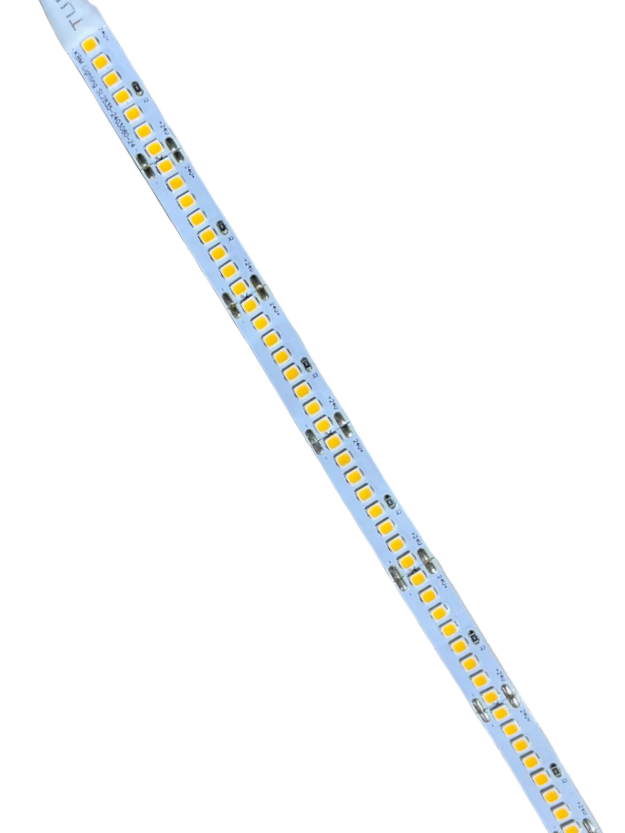

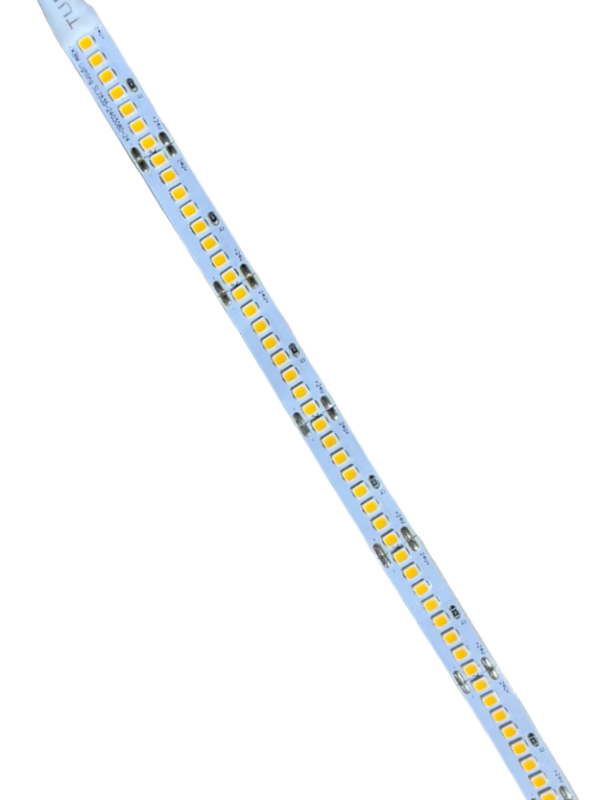

สตริปไลท์ 3528 12 ทับ 24 โวลต์ ยาว5 เมตร
ดาวน์โหลด
Model : KSL3528240
Rate Power : 15-19.2W
Luminous Flux : 1,728 lm/m
Input Voltage : 12V / 24Vdc
Color Temperature : CCT 3,000K / 4000K / 6500k
LED Qty (LED/m) : 240
INDUSTRIAL LIGHT: SERIES KSL SMD3528
MODEL : KSL35286030 / KSL35286040 / KSL35286065 / KSL352812030 / KSL352812040 / KSL352812065 / KSL352824030 / KSL352824040 / KSL352824065 / KSL3528060R / KSL3528060G / KSL3528060B / KSL3528060A
Specification
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rate Power : | Watt/meter | Beam Angle : | 120° |
| Luminous Flux : | 432 lm/m / 864lm/m / 1,728 lm/m | Watt/Meter : | 4.8W / 9.6W / 15W / 19.2W |
| Luminous Efficiency : | 100lm /m / 300lm /m / 70lm/m / 120lm/m | Driver : | External |
| Color Temperature : | 3000K / 4000K / 6500K RED / GREEN / GLUB / AMBER |
LED Chip : | SMD |
| Color Rendering Index : | >80 Ra | ||
| Work Life : | 20,000hr | ||
| Power Factor : | Non | LED Qty (LEDs/m) : | 60 / 120 / 240 |
| Work Temperature : | Dimensions : | 5 meter | |
| Input Voltage : | 12V / 24Vdc | Efficiency (Lm/w ±10%) : | 70lm/w / 90lm/w / 100lm/w |
| 120lm/w / 300lm/w | |||
| Color : | White | Cover : | Non |
| FPC Width (mm) | 10mm | IP Rating : | IP20 / IP67 |
| ขนาด | ไม่ระบุ |
|---|---|
| Power: | 15W, 19.2W |
| Input Voltage (Vdc) | 12Vdc, 24Vdc |
| CCT: | 3000K, 4000K, 6500K |
| IP: | 20, 67 |
