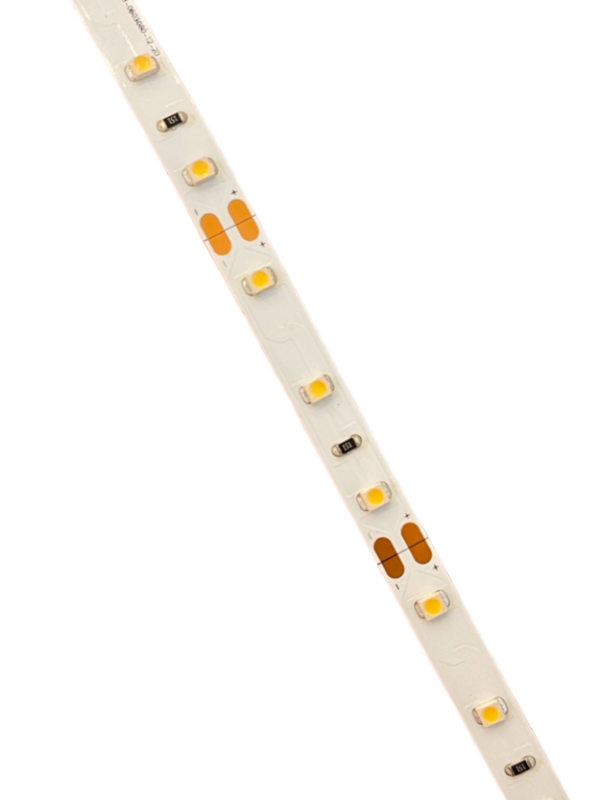

สตริปไลท์2835 12ทับ24ไวลต์ยาว5เมตร
ดาวน์โหลด
Model : KSL283584
Rate Power : 14W / 16.8W
Luminous Flux : 1,512 lm/m
Input Voltage : 12V / 24Vdc
Color Temperature : CCT 3,000K / 4000K / 6500k
LED Qty (LED/m) : 84
INDUSTRIAL LIGHT: SERIES KSL SMD2835
MODEL : KSL28356030 / KSL28356040 / KSL28356065 / KSL28358430 / KSL28358440 / KSL28358465 / KSL283512030 / KSL283512040 / KSL283512065
Specification
</tr
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rate Power : | Watt/meter | Beam Angle : | 120° |
| Luminous Flux : | 1,296 lm/m / 1,512 lm/m / 1,800lm/m | Watt/Meter : | 12W / 14.4W |
| Luminous Efficiency : | 90 lm/w | 14W / 16.8W | |
| Color Temperature : | 3000K / 4000K / 6500k | 15W / 20W | |
| Color Rendering Index : | >80 Ra | ||
| Work Life : | 20,000hr | ||
| Power Factor : | Non | LED Qty (LEDs/m) : | 60 / 84 / 120 |
| Work Temperature : | Dimensions : | 5 meter | |
| Input Voltage : | 12V / 24Vdc | ||
| Color : | White | Cover : | Non |
| FPC Width (mm) | 10mm | IP Rating : | IP20 / IP67 |
| Power: | 14W, 16.8W |
|---|---|
| Input Voltage (Vdc) | 12Vdc, 24Vdc |
| CCT: | 3000K, 4000K, 6500K |
| IP: | 20, 67 |
