แอลอีดีพาแนลแบบฝั้งฝ้า 6วัตต์ถึง22วัตต์
ดาวน์โหลด
Model : KPL046WR/S / KPL048WR/S / KPL0612WR/S / KPL0615WR/S KPL0818WR/S / KPL0822WR/S
Rate Power : 6-22W
Luminous Flux : 510-2,200lm
Input Voltage : AC 100-265V , 50/60Hz
Color Temperature : CCT / 3000K / 4000K / 6500K

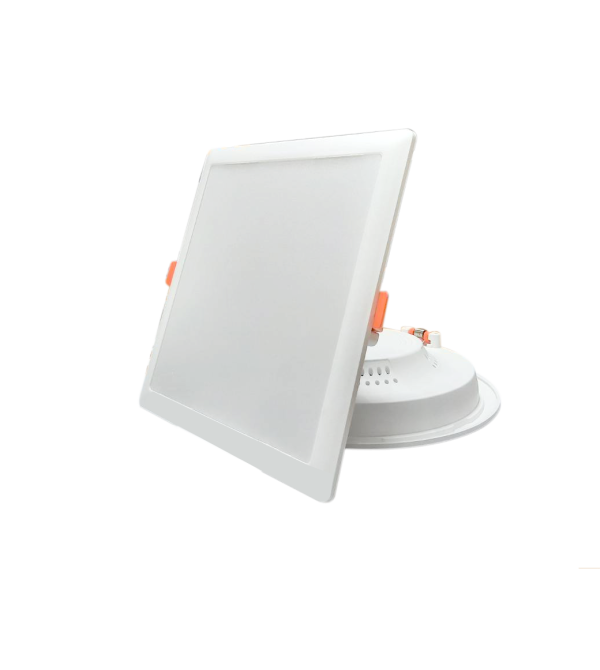

DOWNLIGHT : SERIES KPL (ROUND) / SQUARE
MODEL : KPL046WR/S / KPL048WR/S / KPL0612WR/S / KPL0615WR/S KPL0818WR/S / KPL0822WR/S
Specification
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rate Power : | 6W – 22W | Beam Angle : | 120° |
| Luminous Flux : | 510lm – 2,200lm | Work Life : | >35,000 Hours |
| Luminous Efficiency : | 85lm/w / 90lm/w / 100lm/w | Dimensions (Square) : | 116x116x36 mm., 166x166x36 mm. 220x220x36mm. |
| Color Temperature : | 3000K / 4000K / 6500K | LED Chip : | SMD |
| Thdi | <30% | Dimensions (Round) : | 116 x 36 mm., 166 x 36 mm. 220 x 36 mm. |
| Power Factor : | > 0.5 | Work Life : | >20,000 Hours |
| Work Temperature : | |||
| Input Voltage : | AC 100 – 265V | ||
| Color Rendering Index : | >70Ra | Cut-out : | 105×105 mm., 155×155 mm |
| inch : | 4″ / 6″ / 8″ | 205×205 mm. |
| Power: | 12W, 15W, 18W, 22W, 6W, 8W |
|---|---|
| CCT: | 3000K, 4000K, 6500K |
| Chose : | Round, Square |
| Lens: | 120° |
สินค้าที่เกี่ยวข้อง

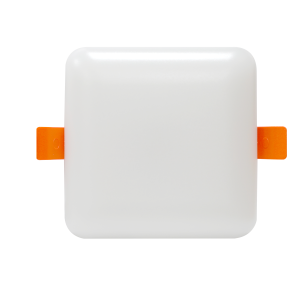

SERIES KPLA (ROUND) / SQUARE
