แอลอีดีพาแนลแบบติดลอย 6วัตต์ถึง22วัตต์
ดาวน์โหลด
Model : KPLA046WR/S / KPLA048WR/S / KPLA0812WR/S / KPLA0815WR/S / KPLA0818WR/S / KPLA0822WR/S
Rate Power : 6-22W
Luminous Flux : 510-2,200lm
Input Voltage : AC 170-265V , 50/60Hz
Color Temperature : CCT / 3000K / 4000K / 6500K
Color Temperature : CCT / 3000K / 4000K / 6500K
Cut-Out (mm): 70*85

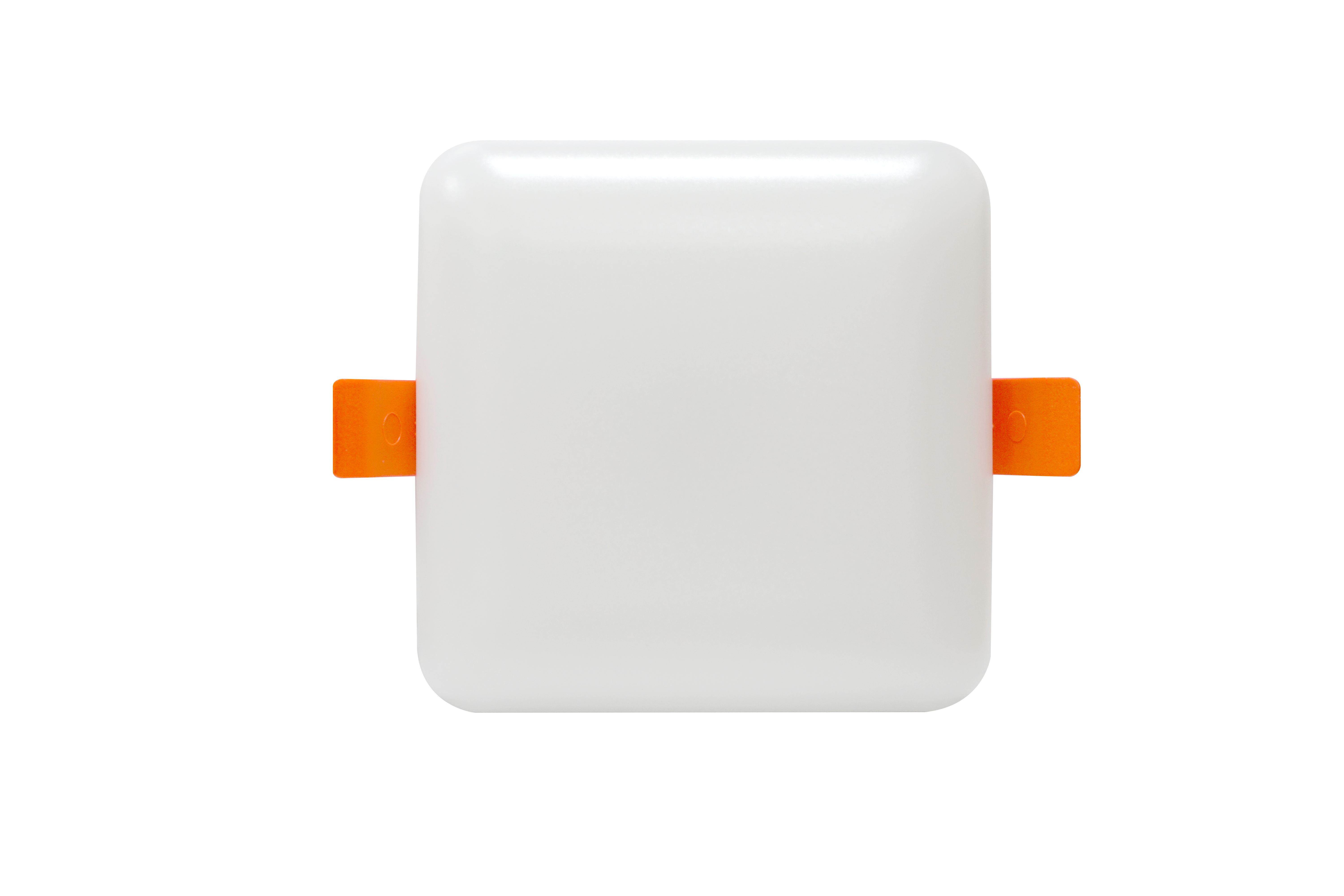

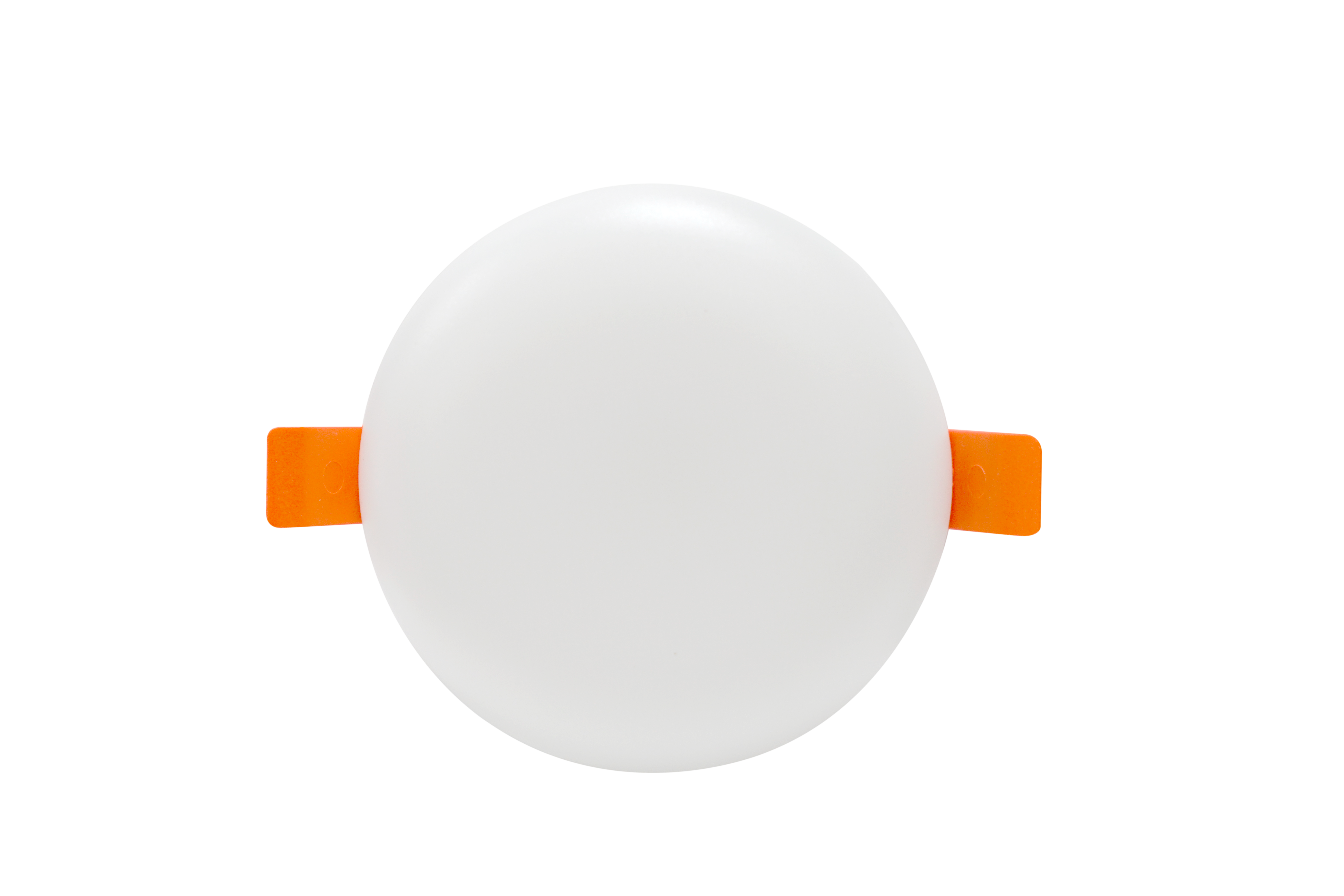

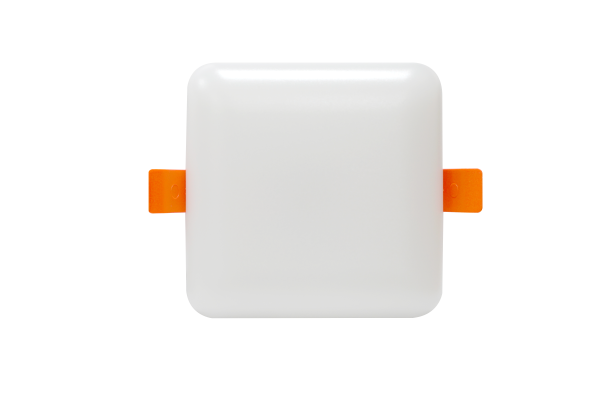

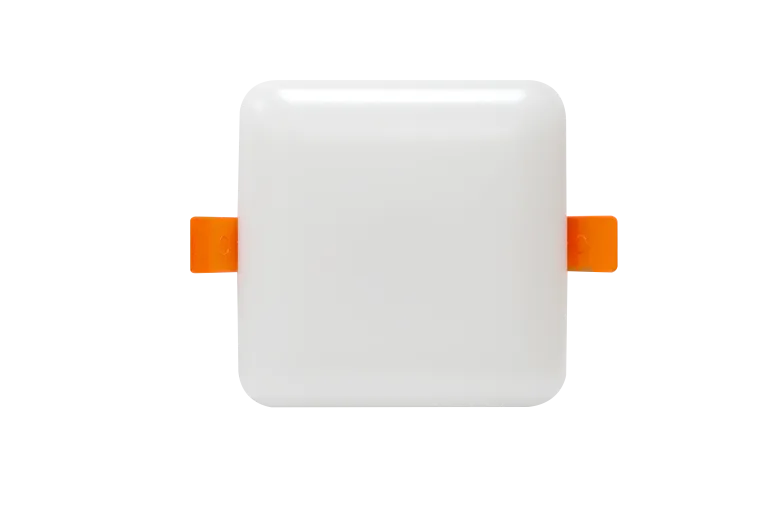

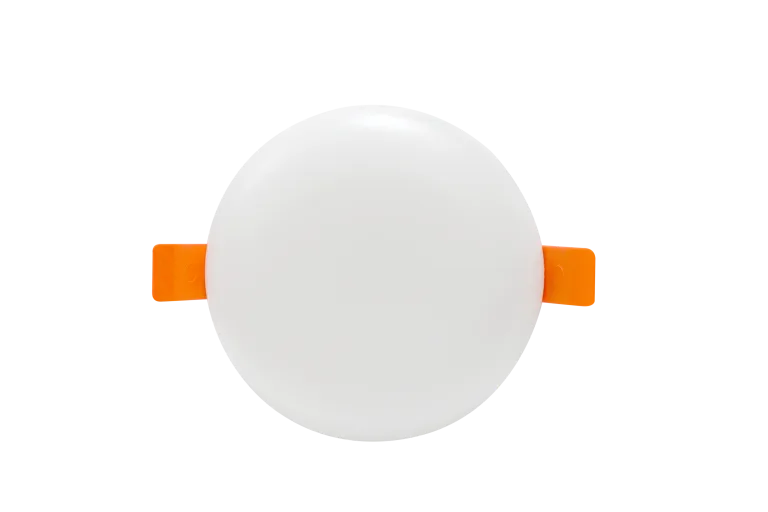

DOWNLIGHT : SERIES KPLA (ROUND) / SQUARE
MODEL : KPLA046WR/S / KPLA048WR/S / KPLA0812WR/S / KPLA0815WR/S / KPLA0818WR/S / KPLA0822WR/S
Specification
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rate Power : | 6W – 22W | Beam Angle : | 120° |
| Luminous Flux : | 510lm – 2,200lm | Work Life : | >35,000 Hours |
| Luminous Efficiency : | 85lm/w / 90lm/w / 100lm/w | Driver : | Internal |
| Color Temperature : | 3000K / 4000K / 6500K | Dimensions (Square) :: | 92x92x43 mm., 142x142x43 mm. 197x197x45 mm. |
| Thdi | |||
| Power Factor : | > 0.5 | Dimensions (Round) : | 92×43 mm., 142×43 mm. 197×45 mm. |
| Input Voltage : | AC 170-265V , 50/60Hz | ||
| Color Rendering Index : | >70Ra | Cut-out : | 70x85mm., 95x130mm., 95x185mm. |
| inch : | 4″ / 6″ / 8″ | Cover : | Aluminium/Plastic |
| IP Rating : | IP20 |
| Power: | 12W, 15W, 18W, 22W, 6W, 8W |
|---|---|
| CCT: | 3000K, 4000K, 6500K |
| Chose : | Round, Square |
| Lens: | 120° |
